GYZJ-934-1

For soft metals such as aluminum and its alloys, brass, copper, and some of the harder plastics and fiberglass. Approximate range 25 to 150 Brinnell (10 mm ball 500 kg load).

View Pricing »

GYZJ-934-1-1

A variation of the 934-1 that has a "flat bottom" shaped support leg. This is used to sit on top of the crest of the round rung of a ladder such as a fire department ladder. Approved by the NFPA.

View Pricing »


GYZJ-935

for the softer plastics and very soft metals.

View Pricing »

GYZJ-936

For extremely soft materials such as lead, linoleum and leather.

View Pricing »


Operation

Simply exert alight pressure against the instrument to drive the spring-loaded indenter point into the material...

View Operation »

Calibration

Follow the step by step calibration procedure for the Barcol Impressor. Use the included tool to begin the procedure...

View Calibration »

Conversion

See the typical readings of aluminum alloys and review the approximate conversion curves for the barcol impressor models...

View Conversion »

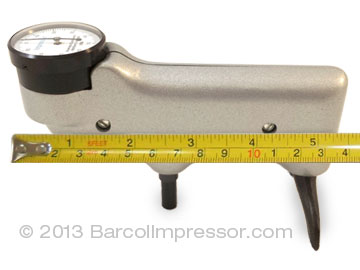

Portable. Convenient.

The Impressor is a convenient tool for testing the hardness of aluminum, aluminum alloys, copper, brass and other materials including plastics and fiberglass. The instrument is designed for use on fabricated parts and assemblies as well as on raw stock.


Easy to use. No experience required.

Can be used in any position and in any space that will allow for the operator's hand. The hardness reading is instantly indicated on the dial (displays 100 graduations). No waiting, pre-loading or separate measurements.


Lightweight.
Only 1 lb. 2 oz.

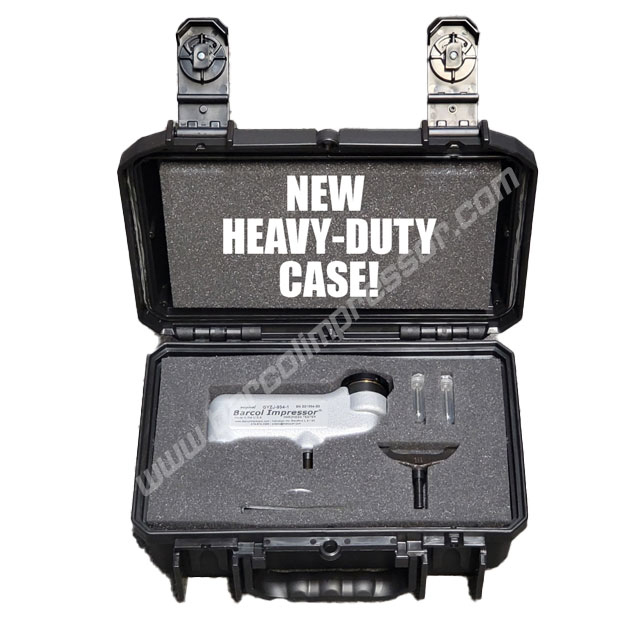

The Impressor weighs only 1 lb. 2 oz. The entire Impressor package comes complete with carrying case, adjusting wrench and two spare indenter points. Shipping weights = 4 pounds, box = 12 x 11 x 6 inches, dimensional weight 5 pounds. (1.8 kilograms, box = 21 x 28 x 16 cm, dimension weight 2.5 Kilograms).


ASTM Standards

The Barcol Impressor meets the following ASTM (American Society for Testing and Materials) standards: E140-97; D2583-75; B648-78: E140-97 Standard Hardness Conversion Tables for Metals; D2583-75 Standard Method of Testing for Indentation Hardness of Plastics by means of a Barcol Impressor; B648-78 Standard Method of Testing for Indentation Harness of Aluminum Alloys by means of a Barcol Impressor.

NFPA Standards

Fire Department Version. The Barcol Impressor meets the following NFPA (National Fire Protection Association) standards: NFPA 1931 Design of and Design Verification Tests for Fire Department Ground Ladders; NFPA 1932 Use, Maintenance, and Service Testing of Fire Department Ground Ladders.
